Midi96 plus-1 Gel System, ME-96 series

Marka:Major Science

Ürün Ölçü Fiyat TL Miktar
Midi96 plus-1 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1mm thick combs, casting dams
ME-96
 Arayınız Arayınız
Midi96 plus-1 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1mm thick combs, casting dams
ME-96ST
 Arayınız Arayınız

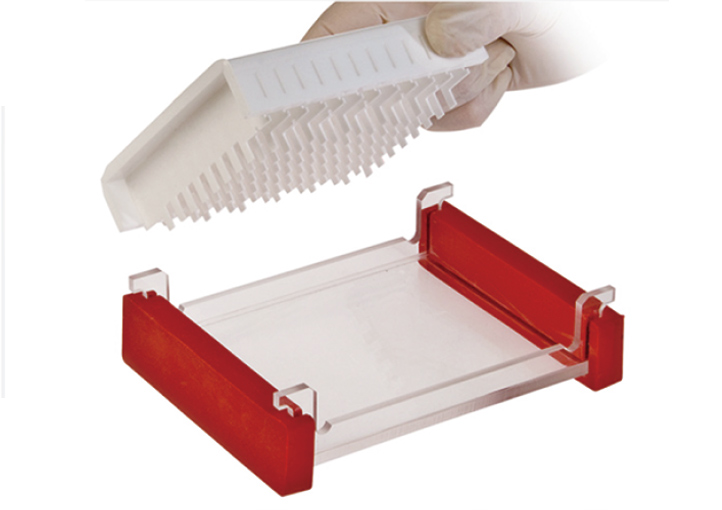

The Midi96 plus-1 Gel System  is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands. Its 10x12cm (WxL) gel dimensions and 96-well comb block format correspond to the standard microplate configuration, with additional lanes for markers. Two different types of comb are available: one which has 8 wells and one additional lane for DNA markers and one which has 8 wells and 2 additional lanes for markers. The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation. Midi96 plus-1 can accommodate samples from a 96-well plate – samples can be loaded directly using 8-channel pipettes. As with all ME series units, leak-proof casting is simplified using the supplied casting dams while their ultra-compact size minimises buffer usage and bench space requirements. Midi96 plus-1 Stretch Systems are also available for those users requiring an extended run length per well of up to 3.6cm.

  • Designed for loading of DNA samples from multi-well plates
  • Ideal for analysis of up to 96 PCR-fragment length polymorphisms loaded from 96-well microplates or thermal cycler blocks
  • Average run-time is just 15 to 30 minutes
  • Direct microplate format for easy lane identification
  • Multichannel pipette compatible combs for speed loading
Cat. No. ME-96  ME-96ST
Gel Dimension
(WxL)		 3.9"x4.7" (100x120mm) 3.9"x9.5" (100x240mm)
Dimension
(WxLxH)		 8.7"x4.9"x3.5" (220x125x90mm) 18.3"x4.9"x3.2" (465x125x80mm)
Buffer Volume 0.08gal (300ml) 0.18gal (700ml)
Max. Sample Capacity
Per 180mm Tray		 96 samples plus 1 or 2 marker lanes
Number Of Samples 8 + 1 x Marker, or 8 + 2 x Markers
Comb Thickness 0.04" or 0.06" (1 or 1.5mm)



Accessories

Cat. No. Product Description
ME-96-8-1-CB Midi96 plus-1 Comb 8 sample MC+1 Marker, 1mm thick comb block
ME-96-8-1.5-CB Midi96 plus-1 Comb 8 sample MC+1 Marker, 1.5mm thick comb block
ME-96-8-1/2M-CB Midi96 plus-1 Comb 8 sample MC+2 Markers, 1mm thick comb block
ME-96-8-1.5/2M-CB Midi96 plus-1 Comb 8 sample MC+2 Markers, 1.5mm thick comb block
ME-96ST-8-1-CB Midi96 plus-2 Comb 8 sample MC+1 Marker, 1mm thick comb block
ME-96ST-8-1.5-CB Midi96 plus-2 Comb 8 sample MC+1 Marker, 1.5mm thick comb block
ME-96ST-8-1/2M-CB Midi96 plus-2 Comb 8 sample MC+2 Markers, 1mm thick comb block
ME-96ST-8-1.5/2M-CB Midi96 plus-2 Comb 8 sample MC+2 Markers, 1.5mm thick comb block
ME-96-8-1 Midi96 plus-1 Comb 8 sample MC, 1mm thick. one Marker lane
ME-96-8-1.5 Midi96 plus-1 Comb 8 sample MC, 1.5mm thick. one Marker lane
ME-96-8-1/2M Midi96 plus-1 Comb 8 sample MC, 1mm thick. two Marker lanes
ME-96-8-1.5/2M Midi96 plus-1 Comb 8 sample MC, 1.5mm thick. two Marker lanes
ME10-UV96 Midi plus-1, 96 well tray
ME10-UV96ST Midi plus-1 STRETCH, 96 well tray



www.bmlabosis.com

Bu ürün BM Laboratuvar sistemleri tarafından ithal edilmektedir.



Ürün Ölçü Fiyat TL Miktar
Midi plus-1, 96 Well Tray
ME10-UV96
 1 Adet 21.870,00 TL
Midi plus-1 STRETCH, 96 Well Tray
ME10-UV96ST
 1 Adet 34.830,00 TL
Ekstra Tarak Çeşitleri - Midi96 plus-1 Comb 8 sample MC COMB BLOCK
ME-96-8
 1 Adet 44.550,00 TL
Midi96 plus-1 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1.5mm thick combs, casting dams, casting dams, Combs have two marker lanes
ME-96/1.5/2M
 1 Set 56.700,00 TL
Midi96 plus-1 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1mm thick combs, casting dams, casting dams, Combs have two marker lanes
ME-96/2M
 1 Set 56.700,00 TL
Midi96 plus-1 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1.5mm thick combs, casting dams, casting dams, Combs have one marker lane
ME-961.5
 1 Set 56.700,00 TL
Midi96 plus-2 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1.5mm thick combs, casting dams, casting dams, Combs have two marker lanes
ME-96ST/1.5/2M
 1 Set 129.600,00 TL
Midi96 plus-2 Gel Electrophoresis System, UV tray,Comb block with 12x8 sample, 1mm thick combs, casting dams, casting dams, Combs have two marker lanes
ME-96ST/2M
 1 Set 129.600,00 TL
