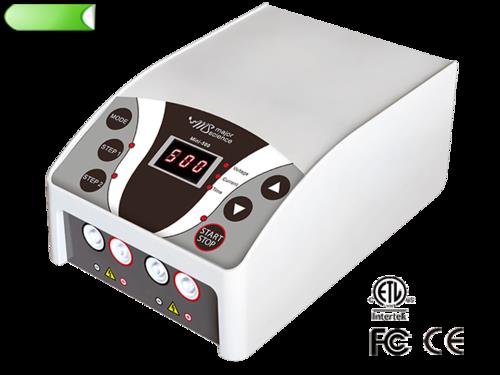

Mini Pro 500V Power Supply

Ürün Ölçü Fiyat TL Miktar
Mini Pro Elektroforez Güç Kaynağı
1 Adet 678 USD
+%20 KDV
30.916,80 TL

Product Character

Designed in compact sizing with versatility, the Mini Pro Power Supply is an ideal choice for space and budget saving. Mini Pro 500V comes with maximum 500V and 400mA capacity. It can meet a broad range of applications including horizontal DNA/RNA gels, SDS-PAGE, mutation detection and western blotting. The running parameter provides constant voltage or current in 1V or 1mA. Continuous or timed operation is easily performed using the simple and user-friendly interface. The safety features are also incorporated into the unit including no load detection and shrouded plug and sockets design. The automatic crossover function also ensures your experiment runs smoothly. The Mini Pro 500V comes with 2 terminal outputs so 2 gel tanks could operate simultaneously, saving you time and bench space.


  • Constant voltage or constant current operation

  • 1V step voltage selection; 1mA step current selection

  • Maximum 500V400mA and 120W capacity

  • Two pairs of outlet terminals

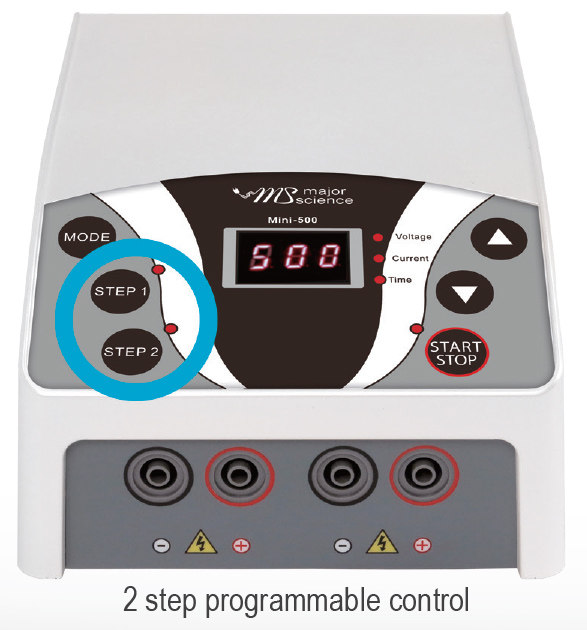

  • Timer with alarm function

  • Compact size and light weight

  • Economical yet powerful enough
  • Packages with vertical gel electrophoresis systems are also avaiable for easy ordering


Order No.  Mini-500
 Output Voltage / Inc.  10 - 500V / 1V
 Output Current / Inc.  10 - 400mA / 1mA
 Output Power  120W
 Output Type  Constant voltage or constant current
 Control  Microprocessor controller
 Terminal Pairs  2 Pairs
 Timer  1~999 minutes with alarm or continuous
 Safety Device  No load detection; shrouded plugs and sockets
 Operation Temperature  4゚C to 40゚C
 Unit Dimension (W x L x H)  5.51" x 7.52" x 3.31" (140 x 191 x 84mm)
 Construction Material  Polycarbonate housing and aluminum base plates
 Weight  Approxi. 2.2 lb (1 kg)
 Rated Voltage  Universal, 100 - 240V
