Safe Electrophoresis System and SafeBlue imager systems (Güvenli Boyalar ile Çalışan Transilimünatör Electroforez)

Ürün Ölçü Fiyat TL Miktar

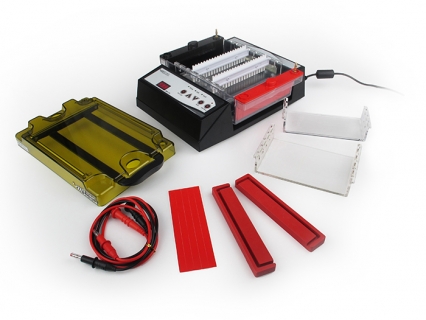

Safe Electrophoresis gel tank, amber filter lid, and red/black cables
MBE-TLC
1 Adet 1150 USD
+%18 KDV
28.497,00 TL
SafeBlue illuminator, includes MBE-150, power cord and power adaptor
MBE-150
1 Set 1950 USD
+%18 KDV
48.321,00 TL
Transilluminator Elektroforezi Güç Kaynağı bir arada tek cihaz (Görüntüleme Sistemi Hariç)
MBE-150PLUS
1 Set 2100 USD
+%18 KDV
52.038,00 TL
Product Description

The Major Science SafeBlue Electrophoresis System is recognized as the only and only Electrophoresis System on the market equipped with very powerful specifications to cover the majority of electrophoresis and power supply demands. The SafeBlue Electrophoresis System uses blue light LED to allow for immediate visualization of DNA/RNA bands while running agarose electrophoresis gels. The complete unit comes with three gel trays, 15 x 7cm, 15 x 10cm, and 15 x 15cm.The system is RoHS and CE compliant for environmental and safety concerns. The system is also offered in different packages to accommodate varying budgets and requirements.

  • Detachable electrophoresis gel tank and base unit

  • Entire ME15 gel tank can be fitted perfectly on top of viewing platform

  • Compatible with gel trays 15 x 15cm (5.91" x 5.91") or smaller

  • Gel tank or UV tray can directly be placed on the viewing platform for gel observation

  • Suitable for EtBr, Midori Green Advanced, SYBR Safe/Gold SYBR Green I/II, SafeView, HealthView, Gel Red/Green, and SERVA DNA Stain Clear G dyes

  • Time saving with immediate visualization of DNA/RNA band migration

  • Blue light LEDs do not require UV safety equipment

  • Compatible with MBE-IMG Image System

  • Optional tray holders are available

Cat. No.  MBE-150
 Output Voltage / Inc.  10 – 150V / 1V
 Output Current / Inc.  10 – 300mA / 1mA
 Max. Power  30 W
 Operating Mode  Constant Voltage or Current
 Timer  1 – 999 minutes with alarm, continuous
 Safety Device  No load detection
 Crossover  Yes
 Blue Light Wavelength  470nm
 LED Life  9000 hours
 Operating Temperature  Ambient to 40
 Dimension (W x L x H)  11.53"x 7.87" x 3.15" (293 x 200 x 80mm)
 Weight  Approx. 2.42 lb (1.1 kg)
 Construction Material  Polycarbonate housing and aluminum base plate
 Power Adaptor   Input: 100 – 240VAC, 50/60Hz, 1.4A
 Output: 15VDC, 4.0A, 60W max.
                                                 proimages/3-SafeBlue_System/0301-MBE-150.png
 Cat. No.  MBE-TANK
 Unit Dimension (W x L x H) 10.43" x 6.89" x 3.54" (265 x 175 x 90mm)
 Gel Dimension (W x L)  5.91" x 2.76" (150 x 70mm), 5.91" x 3.94" (150 x 100mm), 5.91" x 5.91" (150 x 150mm)
 Maximum Sample     70 for 150 x 70mm Tray (2 x 35 sample combs)
 140 for 150 x 100mm Tray (4 x 35 sample combs)
 210 for 150 x 150mm Tray (6 x 35 sample combs)
 Buffer Volume   500ml
 Construction   Acrylic (Injection molded construction)
 Durable, leak proof environment for complete safety and long life
 Cassette Type Electrode  Inexpensive, easy to replace
 Electrical Safety   Lid can only be fastened in one way
 Upon lid removal, power is disconnected from buffer chamber
 Rapid Casting Gel   Use casting dams

                                                   proimages/3-SafeBlue_System/Spec/MBE-150-TANK-1.png

 Cat. No.  MBE-LID-Y1
 Dimension (W x L x H)  6.92" x 10.55" x 1.98" (176 x 268 x 35mm)
 Filter Type  Amber filter (ideal for EtBr, Midori Green Advanced, SYBR Safe/Gold SYBR Green I/II, SafeView, HealthView, Gel Red/Green, and SERVA DNA Stain Clear G dyes)
 Lid Filter Wiper  Used to remove condensation
 Construction Material  Polycarbonate

                                                     proimages/3-SafeBlue_System/Spec/LID.jpg
