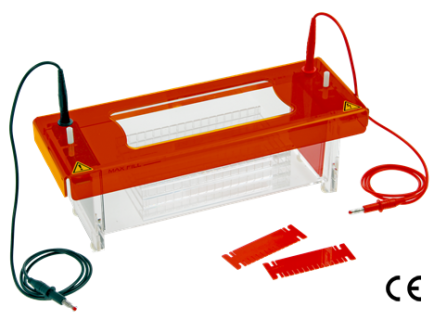

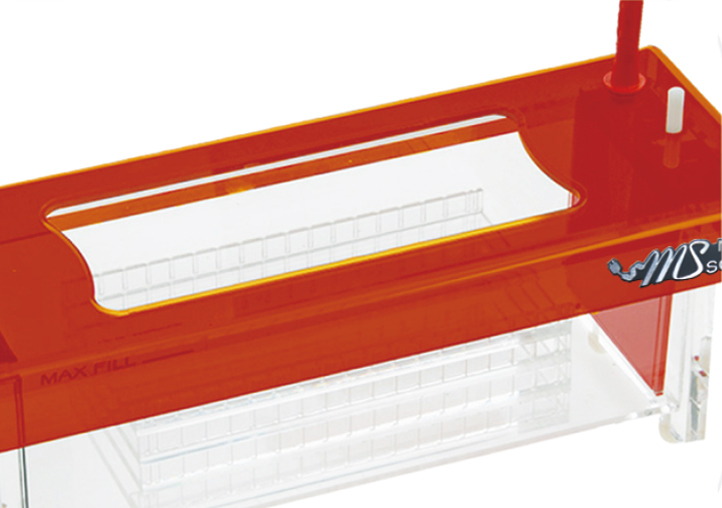

Super plus Gel Electrophoresis System

Marka:Major Science

Ürün Ölçü Fiyat TL Miktar
Super plus Gel Electrophoresis System
ME-Level4
 Arayınız Arayınız
Super plus Gel Electrophoresis System multi-level Gel Chamber, includes 4x 18cm UV Trays, 8x 18/8 Sample 1.5mm Combs With External Caster For 4 Gels
ME-Level4/EXCAS
 1 Set Arayınız Arayınız

The ME-Level4 is a compact system capable of running a maximum 1200 samples simultaneously by stacking up to 4 horizontal gels. This achieves high sample throughput while maintaining the time- and space-saving advantages of a small, compact unit.

Each  Super plus Gel System is supplied with 4 gel trays and 8 combs as standard, while additional trays and combs may be purchased as required. Two double-sided comb and three tray length formats are also available. An optional flexi caster, either supplied separately or as a package with the Super plus Gel System, is also available that allows up to four 80x60, 80x120 and 80x180mm gel trays to be cast simultaneously outside the tank.

Features

  • Separates a maximum 1200 samples in as little as 15 minutes in 4 stacked horizontal gel trays
  • Multichannel-compatible combs and gel plate configurations compatible with microplates and thermal cycler blocks ensure rapid loading of DNA minipreps and PCR products by 8-channel pipette
  • Double-sided 1.5-mm-thick combs allow more sample volume to be loaded into each well
  • Three gel tray options available in 80x60, 80x120 and 80x180mm (WxL) sizes for maximum flexibility
  • Small footprint area reduces uptake of bench space within the laboratory
  • Ideal for rapid checking of large numbers of samples from PCR and cloning
Cat. No ME-Level4
Gel Dimension (WxL) 3.2"x2.4" (80x60mm)(Optional)
3.2"x4.8" (80x120mm)(Optional)
3.2"x7.1" (80x180mm)
Dimension (WxLxH) 13.8"x4.3"x6.3" (350x110x160mm)
Buffer Volume 200, 400, 600 or 800ml
for 1,2,3 or 4 gel trays respectively
Max. Sample Capacity
Per 180mm Tray		 With 10mm run length: 306
With 20mm run length: 144
With 30mm run length: 72
Number Of Samples 1, 8, 12, 18 duocombs
Comb Thickness 0.04" or 0.06" (1 or 1.5mm)



Accessories

Cat. No. Description
ME-L4-UV6 80x60mm tray
ME-L4-UV12 80x120mm tray
ME-L4-UV18 80x180mm tray
ME-L4-EXCASTER External caster for ME-Level4 (4 Trays)
ME-L4-12/1-1 12/1 sample 1mm combs
ME-L4-18/8-1 18/8 sample 1mm combs
ME-L4-12/1-1.5 12/1 sample 1.5mm combs
ME-L4-18/8-1.5 18/8 sample 1.5mm combs

www.bmlabosis.com

Bu ürün BM Laboratuvar sistemleri tarafından ithal edilmektedir.
