The Digimage Simple, Compact Gel Documentation System (Temel Jel Görüntüleme Sistemi)

Ürün Ölçü Fiyat TL Miktar
Temel Jel Görüntüleme Sistemi 254 & 312nm UV Transilluminator dahil (Kamera Hariç)
UVDI-CB-254 & 312
1 Adet 7875 USD
+%18 KDV
195.142,50 TL
Temel Jel Görüntüleme Sistemi 254 & 365nm UV Transilluminator dahil (Kamera Hariç)
UVDI-CB-254/365
1 Adet 7875 USD
+%18 KDV
195.142,50 TL
Temel Jel Görüntüleme Sistemi 365nm UV Transilluminator dahil (Kamera Hariç)
UVDI-CB-365
1 Adet 7875 USD
+%18 KDV
195.142,50 TL
Temel Jel Görüntüleme Sistemi 312nm UV Transilluminator dahil (Kamera Hariç)
UVDI-CB-312
1 Adet 7875 USD
+%18 KDV
195.142,50 TL
Temel Jel Görüntüleme Sistemi 254nm UV Transilluminator dahil (Kamera Hariç)
UVDI-CB-254
1 Adet 7875 USD
+%18 KDV
195.142,50 TL
Temel Jel Görüntüleme Sistemi 254 & 312nm UV Transilluminator ve 12.1 megapixels Digital Kamera dahil
UVDI-254/312
1 Adet 11250 USD
+%18 KDV
278.775,00 TL
Temel Jel Görüntüleme Sistemi 254 & 365nm UV Transilluminator ve 12.1 megapixels Digital Kamera dahil
UVDI-254/365
1 Adet 11250 USD
+%18 KDV
278.775,00 TL
Temel Jel Görüntüleme Sistemi 365nm UV Transilluminator ve 12.1 megapixels Digital Kamera dahil
UVDI-365
1 Adet 11250 USD
+%18 KDV
278.775,00 TL
Temel Jel Görüntüleme Sistemi 312nm UV Transilluminator ve 12.1 megapixels Digital Kamera dahil
UVDI-312
1 Adet 11250 USD
+%18 KDV
278.775,00 TL
Temel Jel Görüntüleme Sistemi 254nm UV Transilluminator ve 12.1 megapixels Digital Kamera dahil
UVDI-254
1 Adet 11250 USD
+%18 KDV
278.775,00 TL
Bilgisayar
BM-BLG01
1 Ad/Pk 15000 TL
+%18 KDV
17.700,00 TL


Product Description

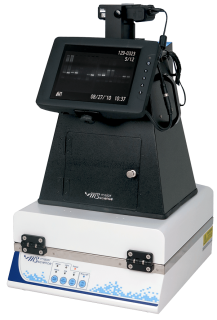

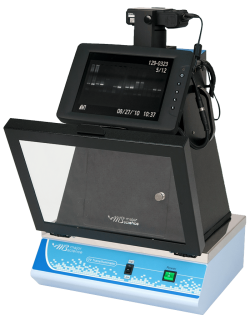

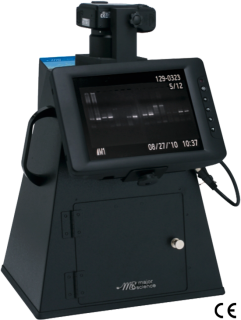

The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains the Canon powershot G15, a digital camera with a superb resolution of 12.1 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only. For a lab with limited space and low budget requirements, the Digimage System is definitely your top choice since it's computer-free operateion. A variety of images can be captured including: agarose and other fluorescent gels, colorimetric gels, auto radiography film, and blotting membrane. A safety switch is equipped to turn off the UV trans-illuminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis. The Digimage System can also directly connect to any BNC thermal printer for printing the result immediately.



  • 10.0 megapixel digital camera

  • High resolution 8” TFT screen

  • Digital control panel

  • Compact chamber and lightweight

  • Multi focus area selection

  • Built-in UV transilluminator

  • Can be operated computer free

  • Connect port for thermal printer

  • Inner 2 x 3 watt white light LED

  • Safety door switch

  • Multi power source

  • Optional gel analysis software package available

  • Universal rated voltage: 100~240V



Camera
 Type  5 x optical / 4 x digital zoom digital camera
 Effective Pixels  Approx. 10.0 megapixels
 CCD  1/1.7" high-density CCD; total pixels 15.0 million
 Maximum Aperture  f/2.8 (W) ~ f/4.5 (T)
 Shutter Speed  15 ~ 1/4000 sec.
 Filters  +3 Close up filter and EtBr or SYBR Green filter(optional)
 Storage Media  memory card
 Computer Interface  USB 2.0 Hi-speed (mini-B jack)
 Video Out  NTSC / PAL
 Darkroom
 Multi-power source  For camera, inner white LED, TFT screen
 Inner white light  2 white LED, 3 watt/LED
 Safety Device  Safety door switch
 Unit Dimension (W x D x H)  11.41" x 8.66" x 12.60" (290 x 220 x 320mm)
 Rated Voltage  110V ~ 240V
 Unit Weight  Approx. 13.42 lb (6.1 kg)
 8" TFT Screeen
Type  8" TFT crystal screen
 Resolution  800 x 600 pixels
 Brightness  350cd / m 2
 Constant Ratio  300 : 1
 Display Mode  NTSC / PAL / SECAM mode auto switching



www.bmlabosis.com

Bu ürün BM Laboratuvar Sistemleri tarafından ithal edilmektedir.

Ürün Ölçü Fiyat TL Miktar
Temel Jel Görüntüleme (Kamera ve UV Transilluminator Hariç) Digimage System Hood without digital camera
DI-HD
1 Adet 4500 USD
+%18 KDV
111.510,00 TL
Temel Jel Görüntüleme Sistemi 12.1 megapixels Kamera dahil (UV Transilluminator Hariç) Digimage System with 12.1 megapixels digital camera
DI-01
1 Adet 7695 USD
+%18 KDV
190.682,10 TL
