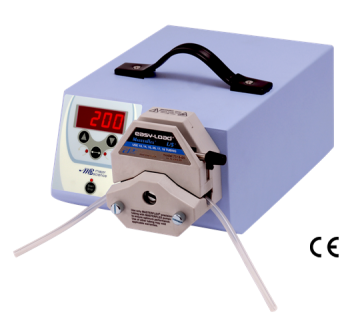

Product Character
MU-D peristaltic pump series is ideal for a variety of applications, which include filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump design allows for several different silicon tubing sizes to be fitted. This gives the user a wider variety of flow rates.
The MU-D series is also reversible providing better convenience and flexibility to the user. The digital control provides high accurate rpm performance.
MU-D01 pump is a digital controlled mode with a solid 50W brushless motor, and MU-D02 is designed with a higher horsepower, 100W for higher volume demands required.
MU-D03 pump is the most powerful pump in this series which packs with powerful pumphead, allows the flow rate to up to 3.3 litre/min with thicker tubing (1.6mm).
Select the appropriate model for your lab with economical yet powerful enough peristaltic pump.
For MU-D01 and MU-D02: - Digital microprocessor control for accurate control
- Compact size for easy transportation
- High quality Watson Marlow Easy load pump head - Flow rate range from 1.2 to 1140 ml/min for MU-D01 and 0.3 to 2280 ml/min for MU-D02 for wide applications
- Reversible for purging
For MU-D03:
- Digital microprocessor control for accurate control - High quality Watson Marlow pump head - Speed range from 20 to 300 rpm with 1 rpm increment - Flow rates from 0.8 ml/min to 3.3 litre/min using 1.6 mm wall thickness tubing - Robust pumphead construction with PPS (polyphenylene sulphide) track and rotor and stainless steel rollers and bearings - High efficiency maintenance free brushless DC motor - Tubing size ranges from 0.5mm to 8.0 mm (I.D) for wider application and usage
| Cat. No. |
MU-D01 |
MU-D02 |
MU-D03 |
| Controller |
Digital Microprocessor Controller |
| Motor |
Brushless motor |
| Power |
50W |
100W |
100W |
| Pump Speed / Inc. |
20 - 300 rpm/ 1rpm |
5 - 600 rpm/ 1rpm |
20 - 300 rpm/1rpm |
| Variable Flow Rate |
1.2 - 1,140 ml/min |
0.3 - 2,280 ml/min |
0.8 - 3,300 ml/min |
| Number of Rollers |
3 |
3 |
2 |
| Operating Temperature |
Ambient to 40°C |
| Unit Dimension (W x L x H) |
7.87” x 13.39” x 5.12”
(200 x 340 x 130 mm) |
13.39” x 9.45” x 6.69”
(340 x 240 x 170 mm) |
| Construction |
Painted Iron metal |
| Weight |
Approx. 12.5 lb (5.7 kg) |
Approx. 13.4 lb (6.1 kg) |
| Rated Voltage |
110V / 220V |
100V ~ 240V |
100V ~ 240V |
